DZOFilm 18-28mm X-Tract T8 FF Probe Zoom Kit (Flex)



by DZOFilm  |  MFR #DZO-X1828ABCS

Availability: Temporarily Out of Stock

This lens is currently out of stock. Typically it takes about 1-2 weeks to arrive from the factory. Get a head start and place your order now and we'll notify you when we expect your order to ship.


Product Features
• 2.1x magnification
• 6mm minimum focusing distance
• Controlled distortion & breathing
• Constant T8 aperture
• Parfocal design
  • The DZOFILM X-TRACT 18-28mm T8 FF Detachable Probe Zoom Flex Kit is a modular, production-ready tool built for unmatched creative freedom in close-up cinematography. This kit includes a single rear optical assembly and three detachable front modules—0°, 90°, and 360°—enabling you to quickly adapt to a wide variety of shooting scenarios without switching out the entire lens. Designed for full-frame coverage with a wide 100° to 73° field of view, it delivers the immersive visual style needed for product work, table-top storytelling, and specialty macro cinematography.

    The compact form factor—just 16.3” long with a sub-1.2” front diameter—combined with a 2.1:1 magnification ratio and a minimum focusing distance of only 0.24”, allows for ultra-tight shots in the most confined setups. High-performance optics with ED and high-refractive index elements ensure clarity and low distortion across the zoom range, while cine-standard gear rings and a 300° focus rotation provide precise control on set. Waterproof, dustproof, and built for flexibility, the Flex Kit gives cinematographers a customizable, scalable system—perfect for streamlined integration into complex shooting environments.


  • Technical Specifications for DZOFilm 18-28mm X-Tract T8 FF Probe Zoom Kit (Flex)

    Focal Length 18-28mm
    Max Aperture T8
    Format Full Frame
    Image Circle* Ø43.2mm*
    Lens Mount PL
    Min. Focus 6mm
    Front Dia. n/a
    Filter Thread None
    Iris Blades 10
    Optical Layout 26 Elements, 19 Groups
    Body Material Anodized Aluminum
    Data Protocol None (Passive)
    Length 421mm
    Weight 1132 grams
    *NOTE: Image circle requirements can be subjective.
    Please use best judgment when considering coverage specs.
    Image circle specs provided by manufacturers.

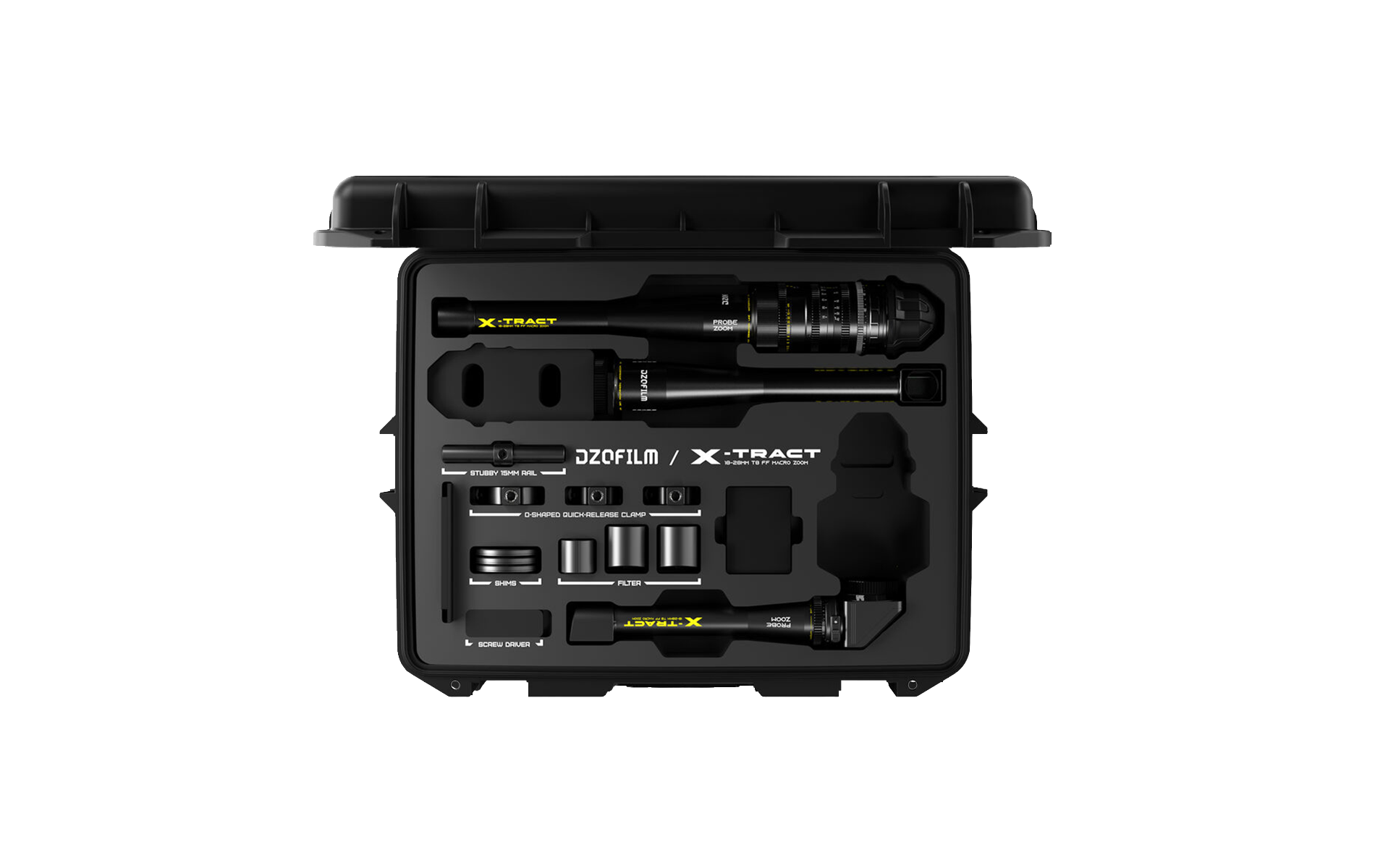

  • - DZOFilm 18-28mm X-Tract T8 FF Probe Zoom Kit (Flex) Lens
    - Front/Rear Caps
    - UV filter
    - O-ring support
    - Tailored travel case

  • Warranty Info
    1-Year DZOFilm manufacturer warranty.
    2-Year Duclos Service+ Program.
    • For maintenance and repair, Contact Us.
