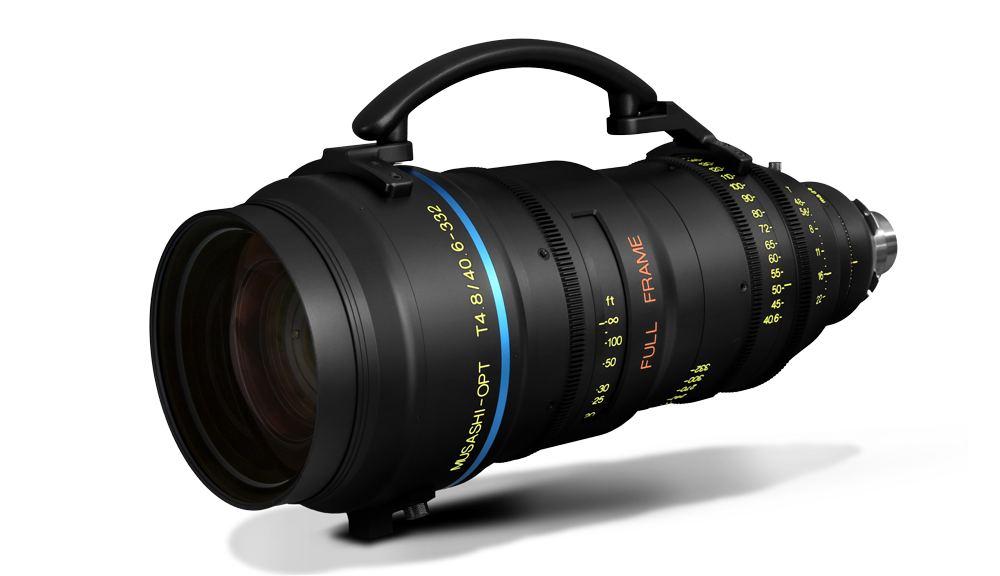

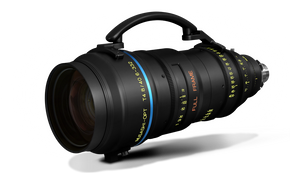

Musashi Takumi 1 40.6-332mm T4.8



by Musashi  |  MFR #takumi1

This lens was discontinued .

  • The 40.6-332mm Takumi 1 is the second cinema lens designed by renowned Japanese optical manufacturer Musashi. This zoom features no ramping, Full Frame coverage and an integrated back focus adjustment. Building on Musashi's foundation for optical brilliance, this lens makes a great addition to the full frame zoom family. (Carry Handle sold separately.)
  • Technical Specifications for Musashi Takumi 1 40.6-332mm T4.8
    Focal Length 40.6-332mm
    Max Aperture T4.8
    Format Full Frame / Vista Vision
    Image Circle* Ø46.3mm*
    Lens Mount PL
    Min. Focus 4.1"
    Front Dia. 136mm
    Filter Thread N/A
    Iris Blades 9
    Optical Layout
    Body Material Anodized Aluminum
    Data Protocol None (passive)
    Length 16.3"
    Weight 20.3 lbs.
    *NOTE: Image circle requirements can be subjective.
    Please use best judgment when considering coverage specs.
    Image circle specs provided by manufacturers.
  • - Musashi Takumi 1 40.6-332mm T4.8 Lens
    - Front/Rear Caps

  • This product has been discontinued. Let our experts help you find an alternative lens.
