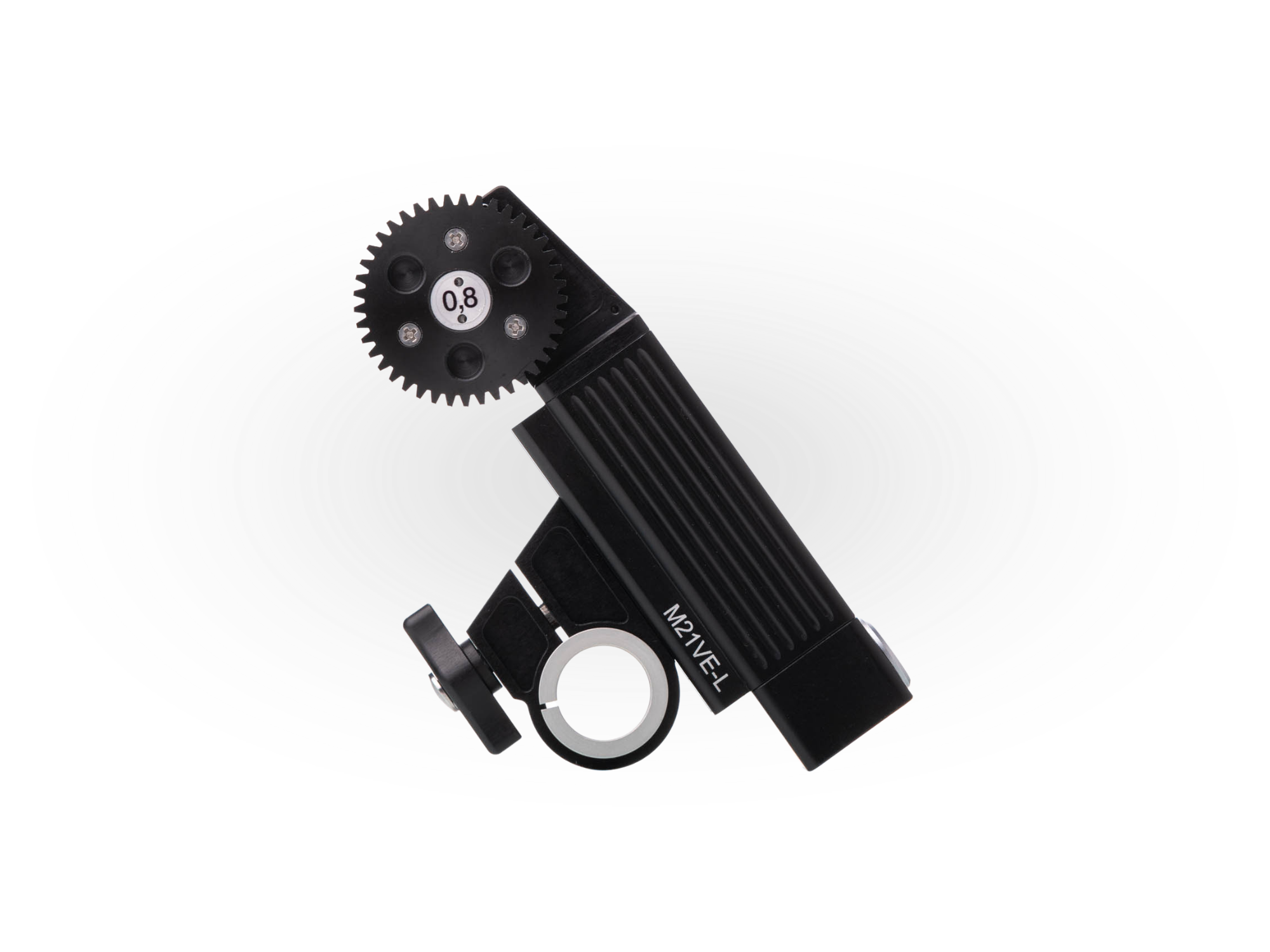

Heden Motor M21VE-L


by Heden  |  MFR #M21-200

$2,090.00

  • The Heden M21VE-L 256-3.3k Motor has been upgraded and now comes with Dual Pin Hub with a snap on gear with dual pin lock mechanism to make it even more reliable. The M21VE is a smaller and lighter version of the M26VE, made for professional film and broadcasting cameras. Its light weight makes the M21VE-L a popular choice for drone operators and its size lends especially well for very crowded spaces. Mounts vertically on a 19 mm rod (or 15mm with included insert) without the need of tools. Supplied with a 0.8 (32-pitch) gear module. (0.4, 0.5, 0.6 modules available separately).

    • Height: (body): 28mm/1.10” (body with gear housing): 34mm/1.33”
    • Width: 21mm/0.83”
    • Length: 106.5mm/4.19”
    • Weight: (without bracket and gears): 135.5gr/ 4.78 oz
    • Torque: 1.0 Nm
    • Connector: LEMO 7 pin connector

  • - Heden M21VE-L Motor
    - 2-pin 0.8 gear module
    - Bracket with 19mm to 15mm (0.75” to 0.59”) reduction insert
